Harrington Releases HFPSL Four-Point Sack Lifter Beam
 |

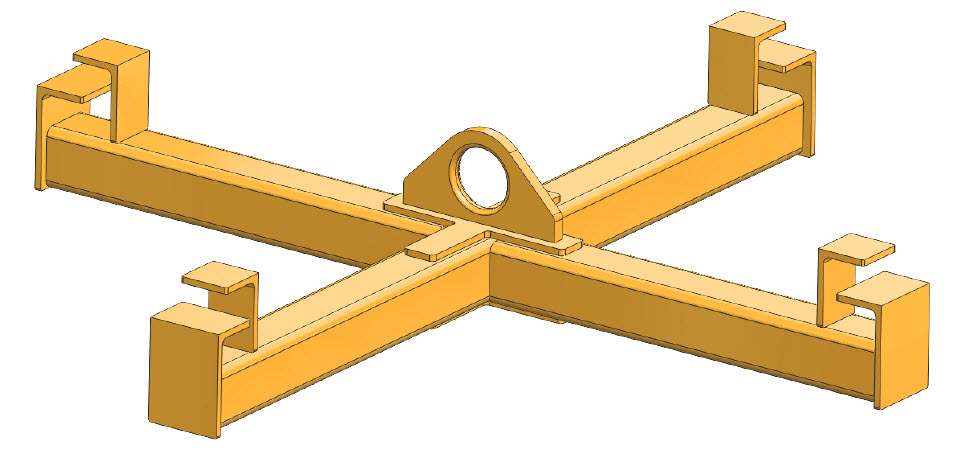

| Enlarge Image Harrington Hoists' HFPSL four-point sack lifter beam |
May 3, 2017 - Harrington Hoists Inc., Manheim, Pa., has introduced the HFPSL four-point sack lifter beam, which is designed to lift bulk container sacks. The HFPSL is available in 1 and 2 Metric Ton capacities with outside spreads of 36 and 48 in.
The HFPSL four-point sack lifter beam features an X-Style design that provides a natural fit over the top of the bulk container sack and allows for a straight-line connection to lifting slings. Additional features include:
- A standard sling keeper design to improve sling containment during the lift,
- A machined radius cut into the top inside edge of the bail to ensure a better connection between the saddle of the hook and the upper radius of the bail, and
- Smooth edge cross-beams to reduce wear on lifting straps.
The HFPSL is engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2 and has a specified fatigue life of 100,001 to 500,000 load cycles. All HFPSL, Four Point Sack Lifter Beams are Proof-Tested to 125% capacity. It can be ordered in Stainless Steel and Low Headroom designs.
