IMT Articulating Crane Offers Long Reach for Productivity
 |
|
Enlarge Image
|

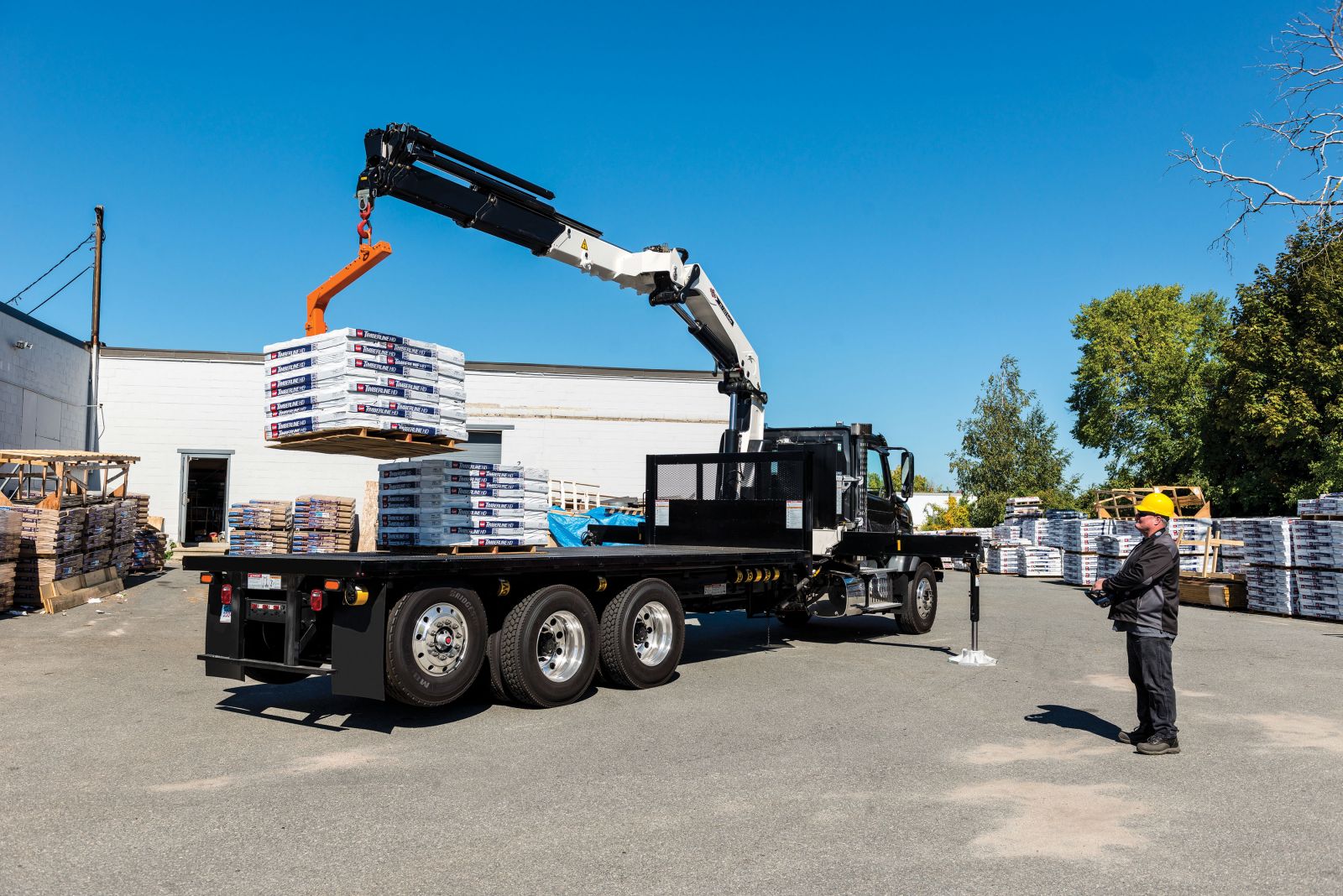

October 22, 2014 - Iowa Mold Tooling Co. Inc. (IMT) has introduced a 32 tonne-meter crane to its articulating crane lineup. Rated 222,050 ft.-lbs., the 32/222 knuckleboom crane features a maximum lifting capacity of 15,058 lbs. at a radius of 14'9". The crane offers a 69'7" horizontal reach with eight hydraulic extensions.
Productivity-enhancing features of the 32 tm articulating crane include the dual-power plus link-arm system, 15-degree overbending, continuous rotation, and a standard radio remote control.
Ultra-high tensile steel construction of the hexagonal boom provides a superior lift-to-weight ratio, high lifting capacity at long reaches and increased payload capabilities. Required mounting space has been minimized, providing more space on the truck body and additional truck configuration possibilities.
The dual-power plus link-arm system found on the 32 tm articulating crane:
- Offers the best lifting capacities under all conditions
- Provides precise and regular movements in the entire working area
- Is particularly well-suited for long reaches and lifting in high positions with demanding equipment (such as fly-jib and winch)
- Works particularly well with the stretch boom system at any height and any reach
The crane comes standard with the rated capacity limiter 5300 system to monitor load moment, operation and function. The RCL system monitors the crane’s load moment, operation and function. In an overload situation, the system warns the operator and interrupts the distribution of oil for crane functions, while allowing functions that reduce load moment to remain operational. The RCL 5300 cooperates with the user and compensates when the RCL senses a situation requiring intervention.
“Overbending” means the working area between the main boom and the jib is no less than 195 degrees. Overbending offers greater flexibility when working through narrow passages and under overhead obstructions; the ability to lift maximum loads in all boom positions; and a lower total height when the crane is stowed on the truck body.
Additional features of the 32 tm crane include an internal hose routing system for hose protection, multiple stabilizer options and an innovative, flexible stow bracket design that secures boom for transportation but does not allow bracket damage.
