IMT Expands Mechanics Body Options

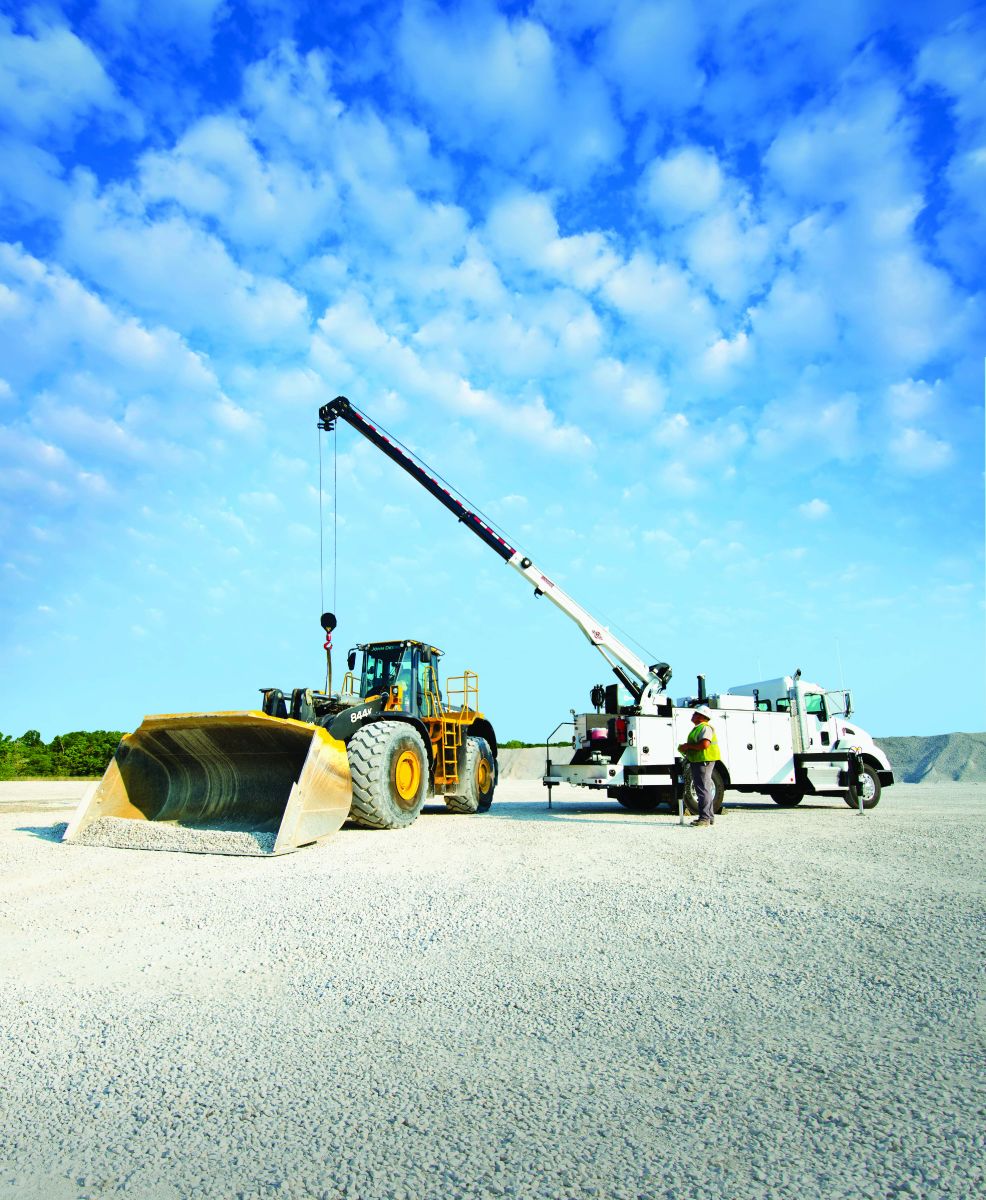

Iowa Mold Tooling's Dominator III mechanics body ENLARGE

September 28, 2015 - Iowa Mold Tooling Co., Inc. (IMT), has introduced a new Dominator® III mechanics body. The new body design accommodates the IMT model 12000 telescopic crane without a front stabilizer, for customers that do not require 100% lift capacity in all load zones.



“Since its release, the IMT Dominator III mechanics truck has been serving a unique niche customer with mid-range lifting needs,” said Jim Hasty, IMT general manager. The new body will be available in both 11- and 14-ft. lengths, replacing the existing 13-ft. version. With two side-pack configurations for each body length—a right front raised with the left side all raised, and an all-raised version—customers have four configuration options to choose from.



The Dominator III model is designed for customers who need more lifting capacity than the Dominator II vehicle’s 10,000-lb. maximum, but do not require the 14,000-lb. capacity of the Dominator IV mechanics truck. Designed specifically to support the IMT 12000 telescopic crane, the truck body provides up to 30 ft. of reach and a Penta boom design. With a flat top that eliminates stress concentrations, and a half hex that controls tracking at long reaches, the five-sided boom offers premium strength and durability.



Standard features of the IMT 12000 telescopic crane include 10° of negative boom angle, providing added versatility and allowing the crane to be reached more easily from ground level; a fully proportional piston-grip radio-remote control offering traditional fit and operation; and LED overload indicator lights on the remote control handle that alert the operator when the crane is approaching overload condition and in overload.



Also standard are a flip-sheave boom tip for added lift height in tight quarters; a planetary winch that allows for faster hoisting and lowering speeds and smoother overall operation; and IMT’s patented boom hook stow that allows the boom hook to be stowed more easily and faster.



The Dominator III model features excellent accessibility to tools without losing any storage, by providing front vertical compartments with single doors. IMT also incorporated the patented shelf hanger bracket system that enables quick adjustments of compartment shelves. In addition, the truck features the new enhancements to the Dominator family which include an energy-absorbing boom stow that protects the top of the body compartments from damage if too much pressure is exerted from stowing the crane; high-intensity LED compartment lighting; and a multiplex electrical system with programmable logic for increased reliability.



The new Dominator III mechanic bodies are available for order now, and shipping is planned to begin in December.
