LineWise Adds Insulated Crane Attachment for Support Energized Lines
Enlarge Image
July 1, 2015 - LineWise has introduced the Phase Lifter, a patent-pending insulated crane attachment that can support up to three energized lines.

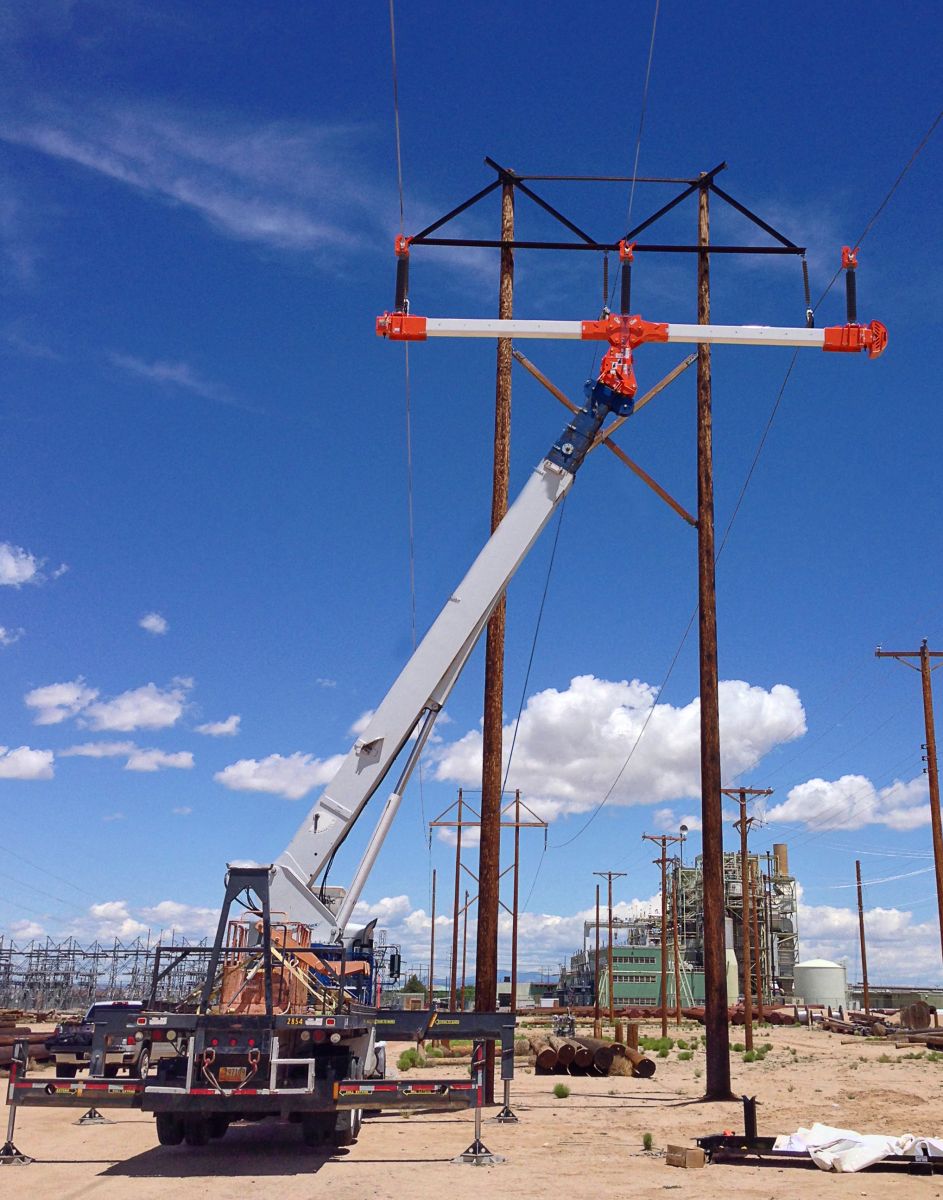

LineWise's Phase Lifter
The Phase Lifter allows workers to come in from underneath and hold the conductor, as opposed to over the top with rigging sticks hanging from a crane. This provides an advantage in areas where there isn’t enough overhead clearance to get outside and above the conductor.
The Phase Lifter also has a 1,500-lb. total vertical load and 225-lb. side load capacity per conductor. Max conductor spacing is 14.5 ft./29 ft. in increments of 6 in., for a max width of 29 ft., which is appealing to large, high-voltage operations.
Because safety is a concern when dealing with energized lines, the quick-attach insulator is available in industry-standard “Line Post Polymer” or sealed fiberglass. The arms are sealed fiberglass and include a desiccant canister to absorb moisture and add another layer of protection. Furthermore, the quick-attach insulator requires no tools to install or remove.
To attach the Phase Lifter to a crane, an adapter specific to the type of crane is fitted. The adapter links are slotted to allow the Phase Lifter angle to be set at the ground, and the crane’s boom is angled from 55- to 80-degrees for horizontal and vertical builds.
When it comes time for setup, the Phase Lifter’s exclusive folding arms are mechanically synced to open and close simultaneously. A pin automatically slides into a slot to lock the arms in a working/open position, while a cross pin locks the pin in place. The arms lock together when closed, and the Phase Lifter stows on the side of the crane for easy transport to and from a jobsite.
