Link-Belt Evolves with Pulse 2.0 Crane Operating System
December 14, 2016 – Link-Belt Construction Equipment has revealed the next evolution of its Link-Belt Pulse 2.0 crane operating system. The updated design has a simple interface for crane operators with a larger display, programmable features that allow each operator to customize their display, and software that can be updated remotely.
Enlarge Image

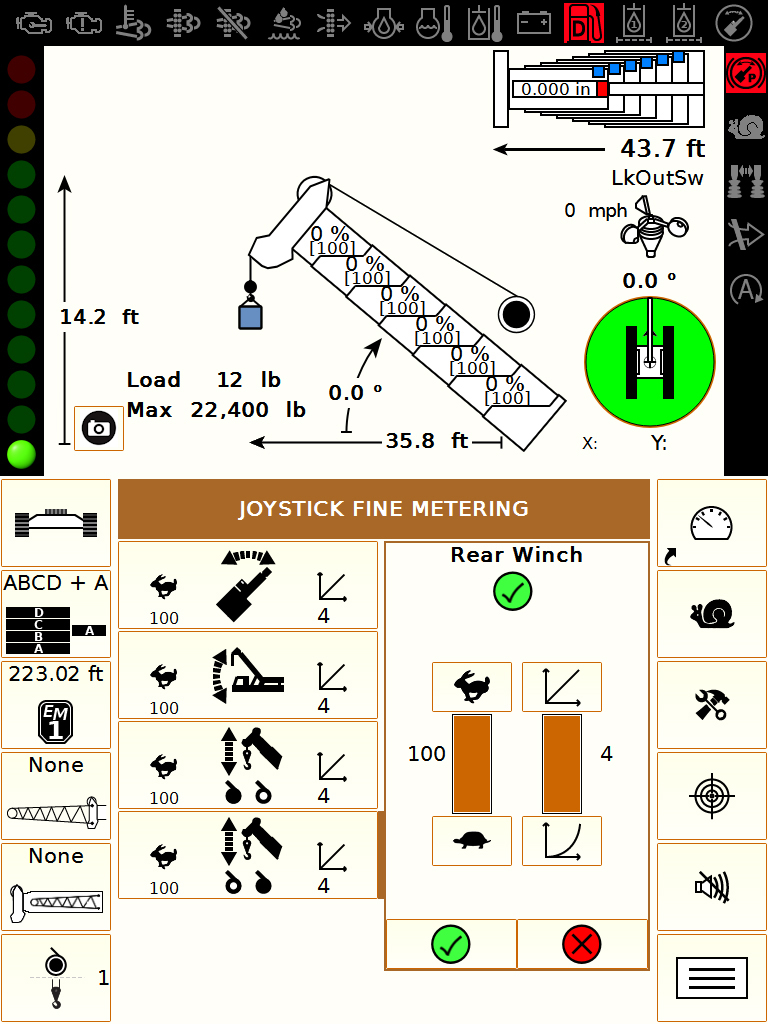

Link-Belt Pulse 2.0 display
The most visible difference is the new 10-in. display, which is 47% larger than the original Pulse screen. It was selected to deliver a high-resolution screen tough enough for operating in harsh environments. Theresistive touchscreen can be used with gloves and be seen in direct sunlight with larger, clearer images; and the unit is pivot-mounted for optimal viewing. The interface is more dynamic throughout the operating system, with larger buttons and interactive indicator lights displayed on the margins.
Once in the seat of the cab, operator startup is quick and easy with faster hardware/software response, as well as fewer required operator inputs. Electronic level/list display and ground-bearing calculator are integrated, depending on model. One specific feature added based on operator input is the ability to shut off the engine and still maintain the live display data for an extended period of time.
Link-Belt Pulse 2.0 also has been enhanced to service and update a crane’s software remotely. The system includes a Wi-Fi hub and uses the serial number of the unit to determine whether any updates are available, and downloads/installs to the appropriate controller. Software maintenance can be accomplished in the field without a service call or bringing the crane in for service.
Link-Belt’s new Pulse 2.0 will be showcased at ConExpo 2017 on new crane models and demonstration units.
