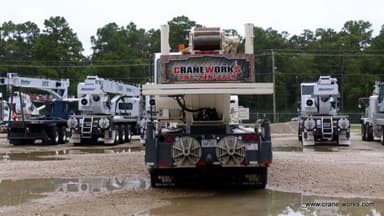

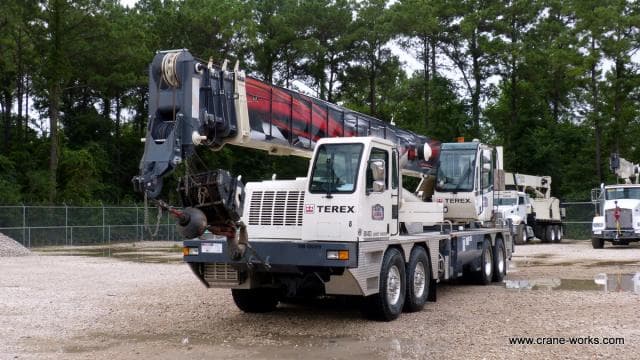

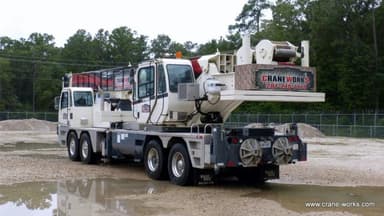

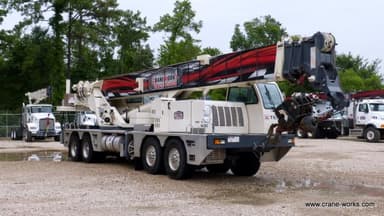

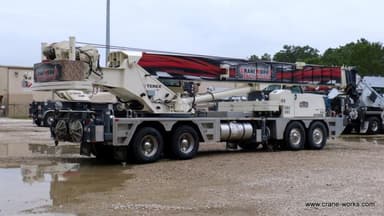

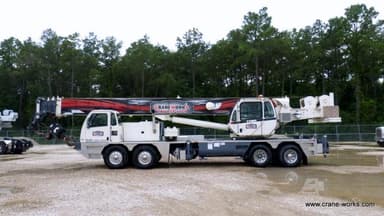

Terex Hydraulic Truck Crane T780 208388
Equipment Information
Asking Price:
$529,000
Listing Number:
897186
Type:
Hydraulic Truck Crane
Manufacturer:
TEREX
Model:
T780
Year:
Serial Number:
102315
Lift Capacity:
80.00
Boom Length:
126.00
Jib Length:
33.00
Hours:
-
Description:
Standard Features
Capacity
-Lifting capacity 80 tons (72.5 mt)
Boom
-Four section, full power, mechanically synchronized boom.
-High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength.
-Quick-reeving boom head; no need to remove wedge from socket.
-Single boom hoist cylinder provides boom elevation of -4 degrees to 76 degrees for easier reeving changes and close radius operation.
-Hoist cylinder is equipped with integral hold valves.
Hoist
-460 fpm (162.5 m/min) maximum line speed, 18,450 lb (8,369 kg) maximum line pull.
-Electronic drum indicators.
-Integral automatic brakes.
-Two speed main hoist with standard lay wire rope.
-Grooved drum, tapered flanges, and spring loaded cable roller for improved spooling.
-Electronic hoist rotation indicator.
Call for more information.
