Description
2019 TADANO MANTIS GTC1200
#86798

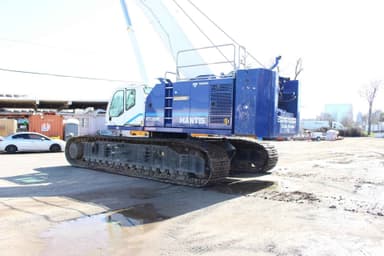

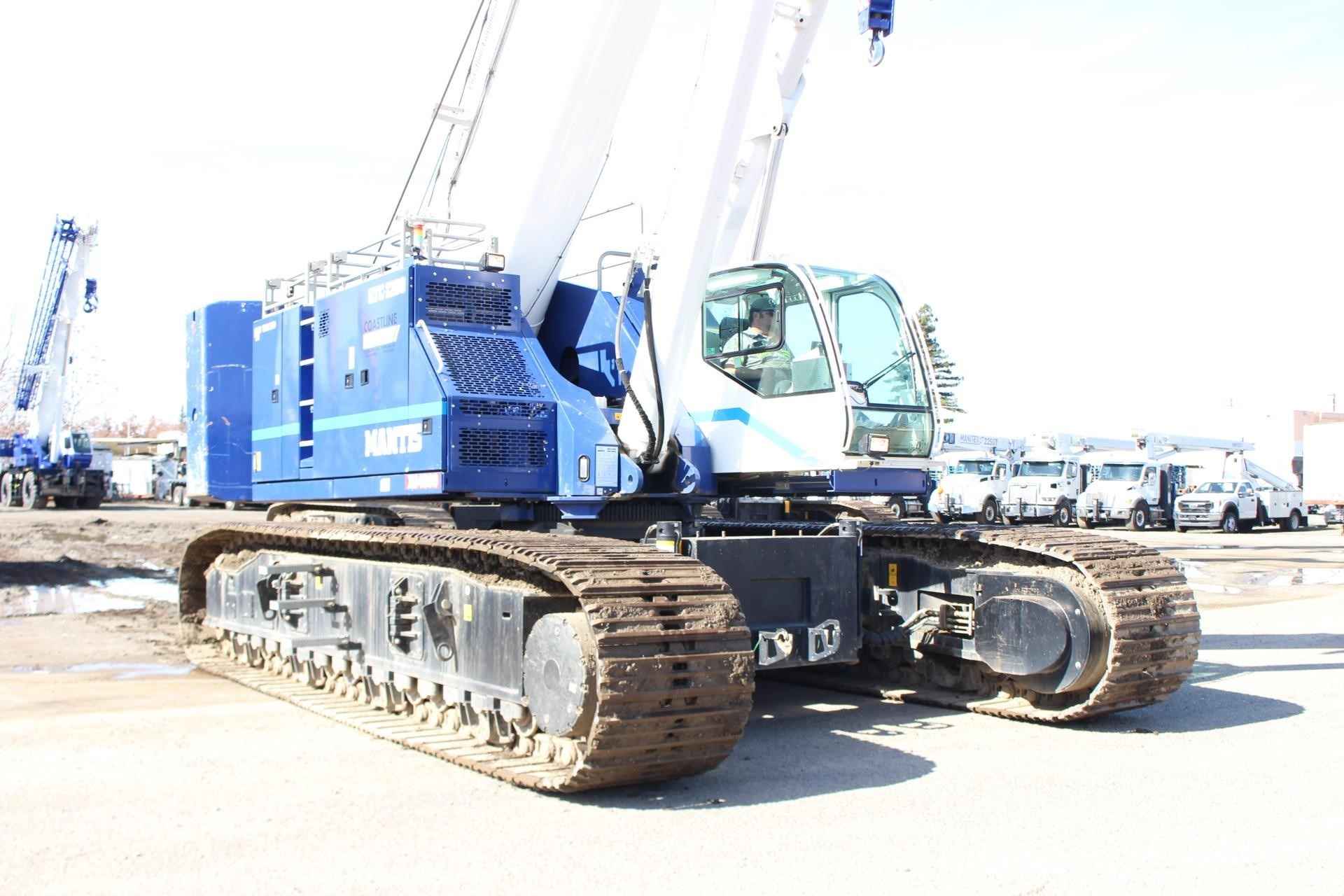

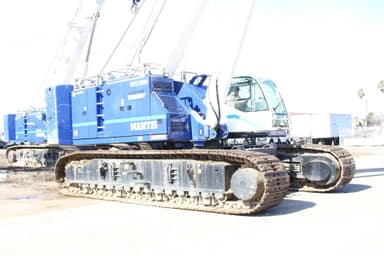

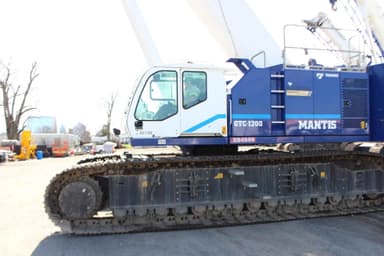

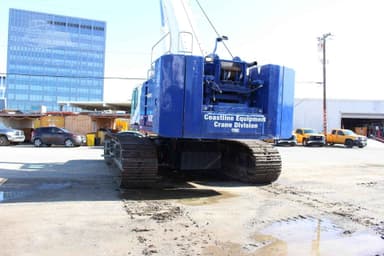

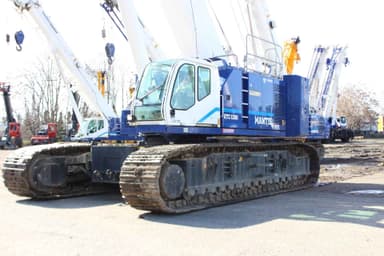

2019 TADANO MANTIS GTC-1200 130 TON CRANE
Standard features:
• 130 ton lift capacity
• 5 section 155’ boom
• Cummins 350 HP QSL9 US EPA Tier 4f Diesel Engine
• Standard Cab with A/C, Heat, Engine Monitoring, 20° tilt configuration
• Tadano AML-C System with North American (ft.- lbs.) Load Charts, automatic switching charts for 1.5°, 2.5° and 4° slope and 3 color light bar
• HELLO-NET Telematics System
• Video Camera Monitor – 3 closed circuit cameras –winches, rear and right side view
• Work Lights – 3 work lights with remote controls
• Main Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator and 758’ of 7/8” rotation resistant wire rope
• Auxiliary Winch with grooved drum, cable follower, drum rotation indicator, 3rd wrap indicator and 613’ of 7/8” rotation resistant wire rope
• Auxiliary Boom Head
• Hydraulic Extendable Undercarriage
• 35.4” Inch 3-Bar Semi-grouser track shoes
• 70,000 lb. rear counterweight
• 20,000 lb. carbody counterweight
• Carbody counterweight storage box
• Crane access walkways and folding aluminum upper handrail system
• Carbody Jacks and rigging mode
• Standard Tadano Mantis Blue/White paint
• Automatic lubrication system for slewing bearing and boom butt pin
• Hydraulic Oil – ISO VG32 – Mineral Based Oil
• 2 printed copies of Operation/Parts/Service Manuals
Additional Options Included:
• 33.5’ to 59.1’ bi-fold jib (includes 12.5’ heavy-lift jib) offsets at 0,20, and 40 degrees.
• 130 Ton Quick Reeve Hook Block • 6-sheaves with swivel hook and safety latch
• 13.8-ton Headache Ball
• Anemometer – Boom mounted wireless anemometer with digital display in cab
Location
Sacramento, CA, United States
Posted On: 12 Dec, 2024
2019 TADANO MANTIS GTC1200
Crawler Crane
$775,000 USD
Sacramento, CA, United States
Year:
2019
Condition:
New
Max load cap:
130.00 tn
Hours:
-
Boom length:
155.00 ft
Jib 1:
59.10 ft
Location
Sacramento, CA, United States
