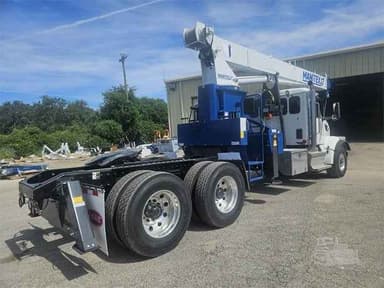

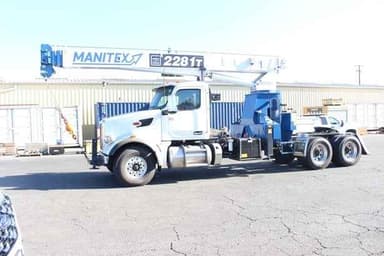

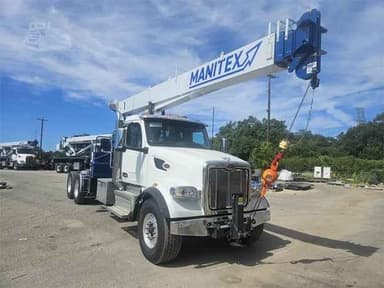

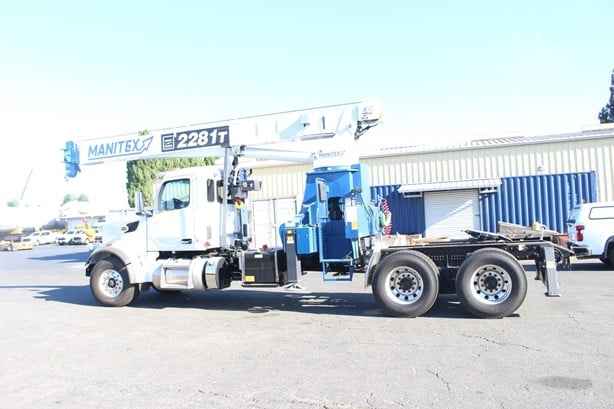

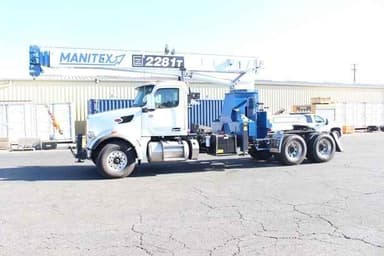

MANITEX 2281T

22 TON CRANE

#114074

Standard features: 81’ Four-Section Telescopic Boom with LMI, 2-speed Hoist w/Grooved drum, 7 Ton Hook and Ball, 3-Load sheave quick reeve boom head, Externally Wired Anti-Two Block w/lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non continuous Rotation, Dual Operator Control Stations, Removable Boom Rest, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Throttle, Foot Throttle, 300’ of 9/16” EIPS IWRC Wire Rope, 70 Gallon HD Reservoir w/Suction Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Load Moment Indicator – Audio/Visual Alert w/Shutoff, Audible Outrigger Motion Alarm, A-Frame Outriggers (21’6” Spread), A-Frame Rear Stabilizers, Outrigger Monitor System for Verification only, Subframe for 22’ Bed, 3-Section Hydraulic Pump-Counterclockwise is standard, Signal Horn Additional Options Included: • Radio Anti-Two Block • Tractor Mount Installation Out & Down Outriggers • Tractor Mount Rear A-Frame Rear Stabilizers in lieu of standard • Chassis Mounted Hydraulic Reservoir • Boom Rest for tractor Mount Behind the cab • Rotation Resistant Rope • 15 Ton 1-Sheave Quick Reeve Block – 9/16 Rope • Front Center Stabilizer • Aluminum toolbox (36” L x 24” W x 24” H) Chassis Mount MOUNTED ON 2024 PETERBILT 567 Mounted on a 2024 Peterbilt 567 tractor chassis with a Paccar MX-13 510 HP diesel engine with a 13 Speed Eaton RTLO18913A Transmission w/oil-to-water cooler, Dana Spicer D2200F 22,000 lb. front axle, Meritor RT46-160 46,000 lb. tandem rear axle, Diff Lock tandem axles, Hendrickson HMX EX 46,000lbs. rear suspension, Holland FW35 fifth wheel, Full set of Alcoa Aluminum Polished wheels, Single polished Aluminum 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, dual heated mirrors, interior color Sterling Gray, ConcertClass radio AM/FM/WB, air horn mounted under cab, exterior stainless steel sunvisor, Halogen headlights, and unit is painted Axalta Two Stage White.
